By locating the main drain, selecting the right clean-out size, and correctly installing an accessible access point, you’ll simplify future maintenance. This step-by-step guide covers planning, materials, safety, and testing to ensure a code-compliant, easily serviced drain. According to Cleaning Tips, a properly placed clean-out reduces snags, minimizes mess, and lowers long-term repair costs.

What is a drain clean-out and why install one

A drain clean-out is an accessible access point into your plumbing system that lets you insert a snake or drain auger to clear clogs without tearing into walls or floors. It’s typically a PVC or metal fitting with a removable cap, installed on a branch or main line where clogs are most likely to occur. The benefit is speed: instead of dispatching a plumber for every minor blockage, you can clear most clogs with a homeowner-accessible clean-out. Properly installed, it also helps maintain sanitary conditions by allowing quick inspection and venting checks. In many homes, clean-outs are required by code in basements, crawl spaces, or utility rooms where main lines run close to living areas. The goal is to provide reliable access that stays protected from debris yet remains easy to open when service is needed. As you plan, remember that the clean-out should be readily reachable for inspection and maintenance, not buried behind cabinets or sealed behind drywall.

Quick note on spacing and configuration: The most useful clean-outs are placed on the main stack near the area they service, not far downstream where access becomes awkward. If you’re upgrading an old system, don’t reuse a capped line as a makeshift access point; install a purpose-built clean-out with a proper cap and gasket to prevent leaks and sewer gas intrusion.

Tools & Materials

Safety goggles(Protect eyes from debris and splashes)
Work gloves(Grip and protect hands during cutting and fitting)
Measuring tape(Accurate distance from the main line and wall)
Hacksaw or PVC cutter(Cut pipe cleanly without fraying)
pvc/metal pipe cutter (as appropriate)(Optional specialty tool for tight spaces)
PVC primer and cement or thread sealant(Seal and secure joints to prevent leaks)
Appropriate clean-out fittings (size dependent)(Choose universal or hub-style depending on pipe type)
Pipe cleaners or deburring tool(Smooth edges for a tight seal)
Bucket and rags(Catch and wipe away any spilled water)
Marker or pencil(Mark cut lines and alignment before cutting)
Adjustable wrench or channel locks(Tighten fittings securely without rounding edges)
Dust mask(Optional if dust is anticipated from cutting insulation or dirt)

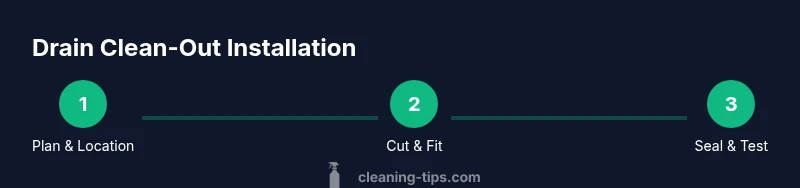

Steps

Estimated time: 60-90 minutes

1
Identify location and plan layout
Locate the section of pipe where clogs most often occur and map a path for the clean-out that provides easy access. Ensure the chosen spot allows a straight run into the main line to avoid sharp turns that hinder snake insertion. Mark the cut line with a marker and double-check clearances from cabinets and doors.
Tip: Choose a location that is easy to access from a room or utility area, not inside a wall cavity.
2
Measure and verify pipe size
Measure the existing pipe diameter and confirm the clean-out size matches the pipe. Mismatched sizes lead to leaks or failed seals. If you’re unsure, take a sample or a photo to a local supply store for confirmation.
Tip: Use a caliper if available or compare with a known size on an old fitting to avoid guesswork.
3
Shut down power and drain zones if necessary
In homes with nearby electrical outlets or appliances, ensure circuits are de-energized if you’ll be working near electrical components or if the drain area is wet. This reduces risk of shock and helps you work safely.
Tip: Always verify that the water source is off and the area is dry before cutting or drilling.
4
Cut the drain and prepare edges
Use a hacksaw or PVC cutter to make a clean cut at the marked line. Deburr and smooth the cut edge so the new fitting seats evenly and forms a tight seal.
Tip: Cut slowly and keep the blade perpendicular to the pipe to avoid a beveled edge that leaks.
5
Install clean-out adapter or proper fitting
Fit the clean-out adapter into the cut section, ensuring the flow direction is correct and that the adapter seats fully against the pipe. Attach any required male/female joints or couplings as per pipe material.
Tip: Dry-fit first to verify alignment before applying cement or thread sealant.
6
Seal joints with the appropriate method
Apply PVC primer and cement for PVC systems, following the product’s instructions, or use appropriate thread sealant for metal connections. Let any adhesives cure as directed by the manufacturer before testing.
Tip: Do not twist fittings while securing; rotate only to align for a snug fit.
7
Secure the clean-out plug and inspect for leaks
Install the clean-out plug or cap and twist to ensure a tight seal. Slowly run water into the drain to test for leaks at every joint. Check for any seepage around the cap and base.
Tip: Use a gasket or washer with the cap to improve the seal and prevent leaks.
8
Restore access and document the installation
Ensure the clean-out is accessible and not obstructed by cabinets or stored items. Note the installation date, location, size, and pipe material in your home maintenance log for future reference.
Tip: Take a photo of the installed assembly for future maintenance checks.

Pro Tip: Measure twice, cut once to avoid costly mistakes.

Warning: Never force a connection; misfit parts can cause leaks or sewer gas exposure.

Note: Keep a clean-work area and clearly label the clean-out location for future access.

Pro Tip: Choose a removable cap with gasket and corrosion-resistant material.

Questions & Answers

What is a drain clean-out and why do I need one?

A drain clean-out provides direct access to a sewer line for clearing clogs and performing inspections. It reduces the need for invasive repairs by allowing quick snaking of the line and checking for blockages. Properly installed clean-outs improve maintenance efficiency and help prevent sewer backups.

Do I need a permit to install a drain clean-out?

Permit requirements vary by locality. In many areas, installing a clean-out that connects to the main line may require approval from the local building department or a plumbing professional. Check with your city or county to confirm requirements before work begins.

What sizes are typical for residential clean-outs?

Residential clean-outs commonly come in 2-inch or 3-inch diameters, depending on the existing pipe size and the building’s plumbing design. Always match the size to the pipe to ensure a proper seal and correct flow.

Can I install a clean-out in any pipe?

Clean-outs are most effective on horizontal sections of drain lines that allow easy access. Do not install a clean-out directly on traps or in locations where access would be obstructed. Follow local codes and manufacturer guidance to choose the right spot.

What should I do if I smell sewage after installation?

Sewer odors indicate a leak or improper seal. Immediately inspect all joints, caps, and seals. If odor persists, stop using the area and contact a licensed plumber to assess venting and trap integrity.

How should I maintain a clean-out over time?

Keep the clean-out cap accessible and free of debris. Periodically check the cap seal for wear and replace as needed. Document maintenance dates and inspect for any signs of leakage after heavy drain use.
